SALIENT FEATURES
Solar collector Panel: Flat plate collector panel offers superior thermal contact hence superior heat adsorption conductivity and long term durability. Corrosion resistance of copper. Combined in with the light weight and high thermal conductivities od aluminium.
Glass Lined enamel Tank:Hot water storage tank is adapted to the advanced technology of vitreous enamel inner tank. Which fuses ro solid steel at about 900º C. The result is a smooth and tough surface that effectively resists the corrosive attacks of hot water chemicals. Thus ensuring a long life span of water tank.
Insulation protection: CFC free polyurethane foam insulation is injected and surrounds the inner tank, filling the space between the inner tank and outer tank thus providing an exceptionally good heat retention barrier. This helps to reduce the energy cost by minimizing standby heat loss.
Electric Element:high-quality immersion type element ensures long lasting performance with choice of various heat input (kw) offering different hot water recovery rates.
Anode Protection: Each tank is provided with a magnesium anode rod to protect it against corrosion, a process well proven in years of application.
Safety Protection: Each tank is provided with a pressure and temperature relief valve (P/T valve). It protects the tank against excessive pressure and temperature by releasing its contents safely to the floor trap via the drain pipe.
Sun Strip Absorber
The fins metallurgically-bonded Aluminum Completely Surrounds a copper tube waterway Corrosion resistance of the copper combined with the light weight and high thermal conductivity of aluminum Superior thermal contact resulting in superior heat adsorption and conductivity and long term durability Anodized Al selective coating, strongest weather resistance and working well in any area Sputtering Al-N-O selective coating, high absorptance and lower remittance
Some of adds

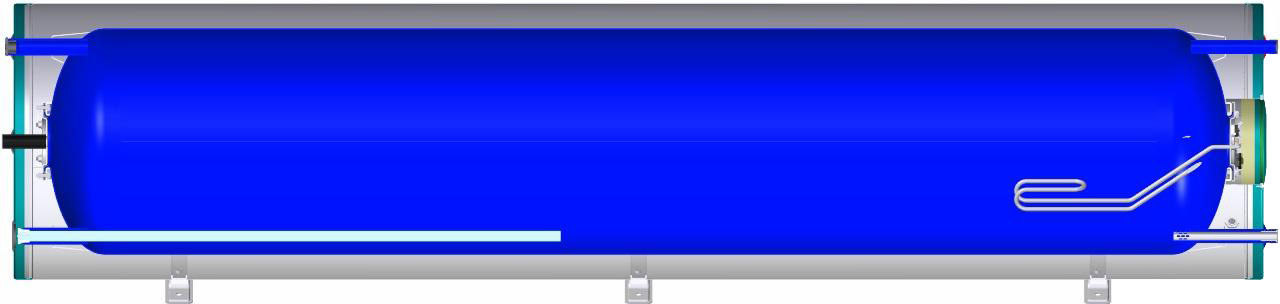

Tank profile
NEW TECHNOLOGY
Water storage tank is adapted to the advance technology of vitreous enamel inner tank, which fuses to solid steel at about 900°C. The result is a smooth and tough surface that effectively resist the corrosive attacks of hot water chemicals, thus ensuring a long life span of water tank.
Insulation Protection
CFC free polyurethane foam insulation is injected and surrounds the inner tank,filling the space between the inner tank and outer tank thus providing an exceptionally good heat retention barrier. This helps to reduce the energy cost by minimizing standby heat loss.
Electric Element
high-quality immersion type element ensures long lasting perfomence with choice of various heat input
(kw) offering different hot water recovery rates.Anode protection
Each tank is provided with a magnesium anode rod to protect it against corrosion, a process well proven in years of application.

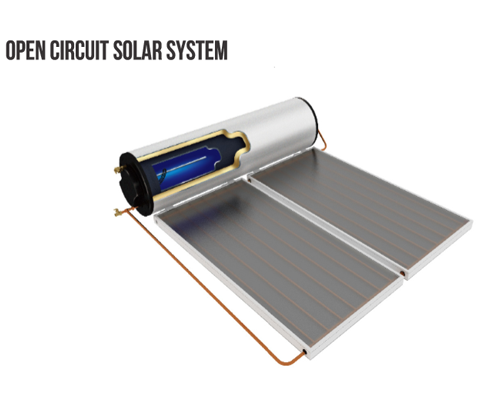

Thermosiphon System
A thermosiphon system is a system where the heated water in the solar collectors rise up into the storage tank by natural thermosiphon action. Thermosiphon action occurs when water is heated in the collectors and expands, becomeing lighter. this allows colder, heavier waer to fall by gravitational force to the bottom of the collector pushes the hot water back up into the storage tank. this natural action commonly known as thermosiphon action occurs without any moving part of auxiliary electrical energy input to the system.
