  • Comprehensive Information

    Commercial Heat Pumps - Two timer setting function on digital LCD wire setting controller. Adjustable 1-5°C temperature differential return from setted water temp.



    Product Details:

  • Internal high efficient copper tube in shell heat exchanger. Only need to connect with regular pressure tank. Easy installation.
  • Built in water flow swtich detect. Use SAGINOMIYO Electronic expansion valve to adjust gas flow n side-ranage accurately.
  • Two timer setting function on digital LCD wire setting controller.
  • Internal clock and setting memory record, auto-restart after power comsumption.
  • Adjustable 1-5°C temperature differential return from setted water temp.

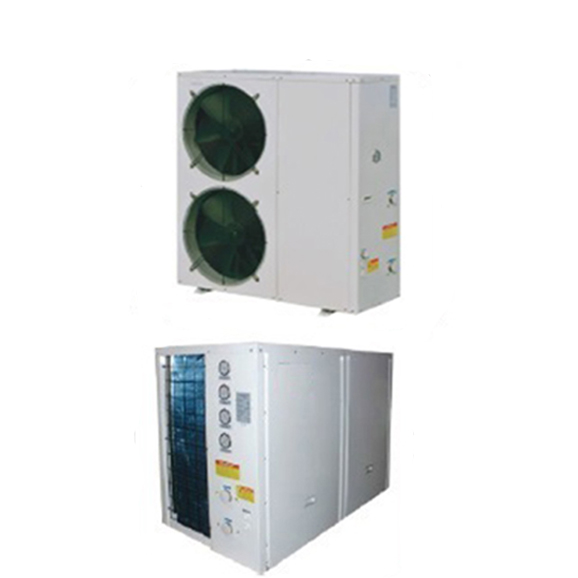

  • Awesome Image


    Commercial Heat Pump @60ºC


    Technical Specifications:


    Model OutPut(kw) Input(kw) Water Rated Ltrs/hr Refrigent
    Heat Pump @60ºC 13.5 3.6 55ºC 330 3.8/R410A
    Heat Pump @60ºC 19.5 4.9 55ºC 475 3.8/R410A
    Heat Pump @60ºC 40 9.5 55ºC 950 3.8/R410A
    Heat Pump @60ºC 90 25 55ºC 2200 3.8/R410A


    Commercial Heat Pump @80ºC


    Technical Specifications:


    Model OutPut(kw) Input(kw) Water Rated Ltrs/hr Refrigent
    Heat Pump @80ºC 14 3.7 80ºC 170 2.2/R410A
    Heat Pump @80ºC 28 7.4 80ºC 340 2.2/R410A
    Heat Pump 80ºC 56 12.5 80ºC 340 2.2/R410A
